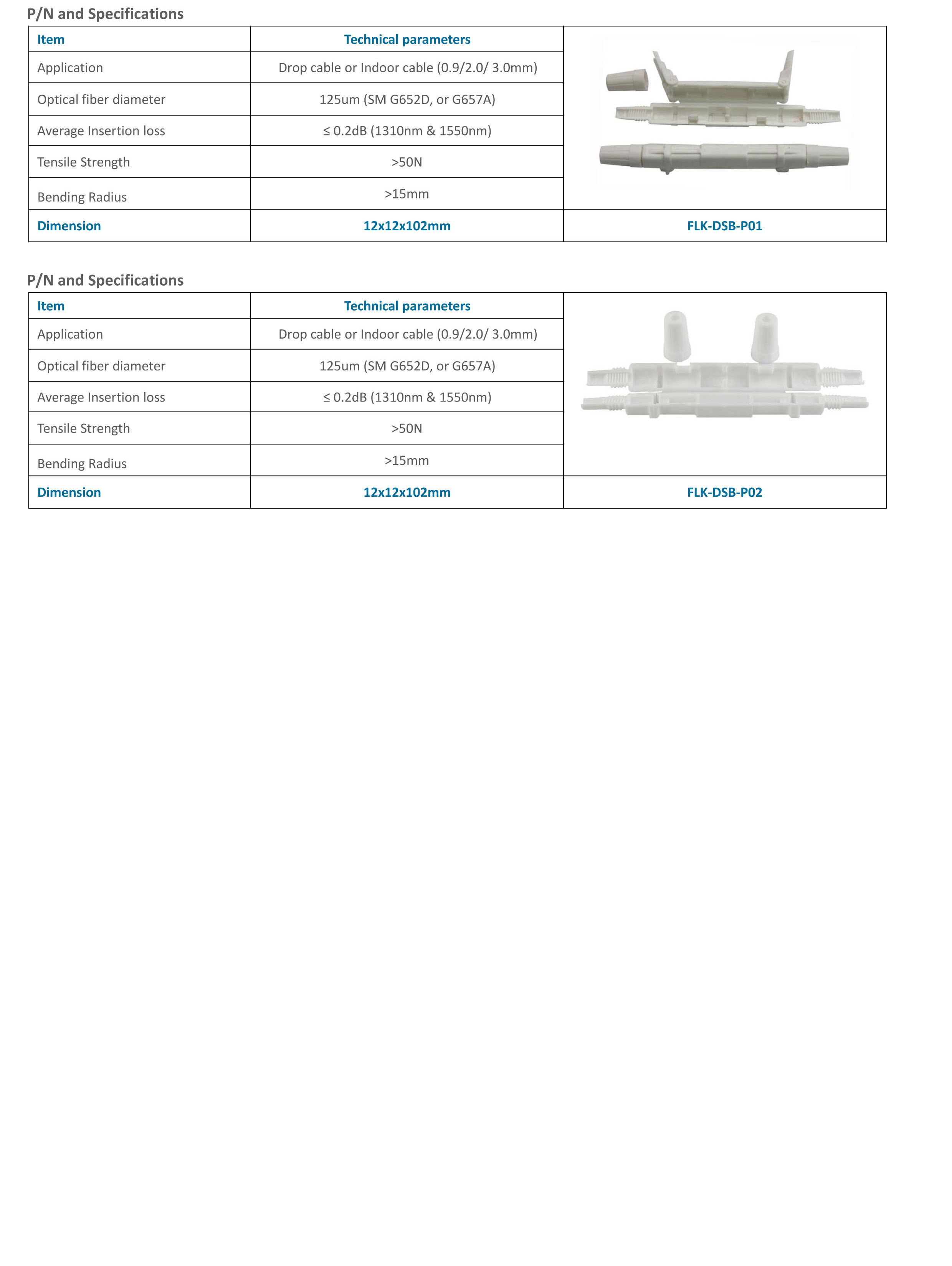

Fiber Mechanical Splicer
Fiber Mechanical Splice(MS) is recommended for indoor, outdoor through and branch splicing, transition splicing between
listed and non-listed cables, pigtail splicing and is ideal for emergency restoration. Incorporating a unique fiber alignment
mechanism that self-centers the fibers and provides accurate alignment, MS requires minimal training and few accessories to
assemble. In Average“blind”(non-tuned) splice loss is 0.15 dB to 0.3 dB. The one-part-fits-all design accommodates 3.1 x 2.0
mm Drop cable. With no adhesive or epoxy required, the assembly process involves stripping and cleaving fibers, inserting the
fibers into the splice part until they touch and turning the cams to secure the fibers.
